END PREP BEVELING TUBE FACING & SQUARING TUBE SEVERING BOILER AND HEAT EXCHANGER
CS Carbon Steel
SS Stainless Steel
P/N Part Number

End Prep Beveling

SUREFIRE 1.5 PIPE BEVELER

37.5° BEVELING/FACING TOOL BITS

RANGE MATERIAL 37.5° BEVELING P/N FACING P/N
1.45" Head: .125" (3.2mm) - .375" (9.5mm) ID
2.00" Head: .125" (3.2mm) - .928" (23.6mm) ID
Bevel Only: .125" (3.2mm) ID - 1.250" (31.8mm) OD 		CS 99-4032 99-4000
SS 99-4036 99-4040
1.45" Head: .375" (9.5mm) - .638" (16.2mm) ID CS 99-4033 99-4000
SS 99-4037 99-4040
1.45" Head: .630" (16.0mm) - .880" (22.4mm) ID
2.00" Head: .664" (16.8mm) - 1.470" (37.3mm) ID
Bevel Only: .800" (20.3mm) ID - 1.500" (38.1mm) OD 		CS 99-4034 99-4000
SS 99-4038 99-4040
1.45" Head: .800" (20.3mm) - 1.050" (26.7mm) ID CS 99-4035 99-4000
SS 99-4039 99-4040
1.45" Head: .900" (22.9mm) - 1.150" (29.2mm) ID
2.00" Head: .900" (22.9mm) - 1.550" (39.4mm) ID
Bevel Only: .125" (3.2mm) ID - 1.800" (45.7mm) OD 		CS 99-4132 99-4000
SS 99-4133 99-4040
1.45" Head: 1.150" (29.2mm) - 1.400" (35.6mm) ID CS 99-0944 99-4000
SS 99-3574 99-4040
2.00" Head: 1.220" (31.1mm) - 1.875" (47.6mm) ID
Bevel Only: .800" (20.3mm) ID - 2.000" (50.8mm) OD 		CS 99-4132 99-0170
SS 99-4133 99-1963

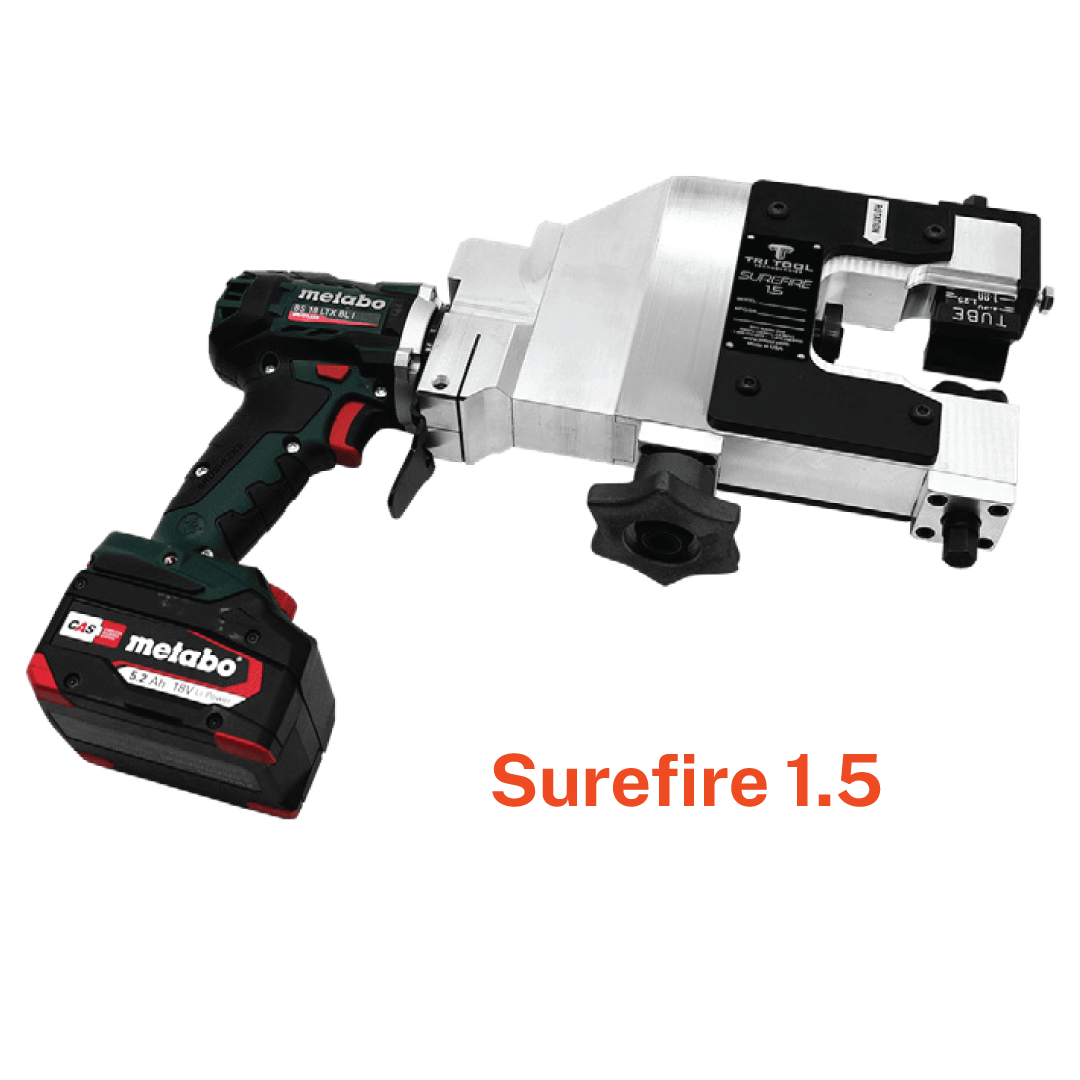

Surefire 1.5 Tooling Illustration

J-BEVEL TOOL BITS

RANGE (J-BEVEL/FACE) MAX WALL ANGLE J RADIUS LAND EXT MATERIAL J-BEVEL P/N FACING P/N HEIGHT
.360" (9.1mm) - 1.049" (26.6mm) ID 22° 0.188" N/A SS 99-11524 99-4040 .625"
.360" (9.1mm) - .980" (24.9mm) ID .400" 22.5° 0.062" 0.062" CS 99-6901 99-6908 .643"
0.080" 99-4040 .625"
0.062" SS/ Superalloy 99-9847 99-6908 .643"
0.080" 99-4040/ 99-8158 .625"

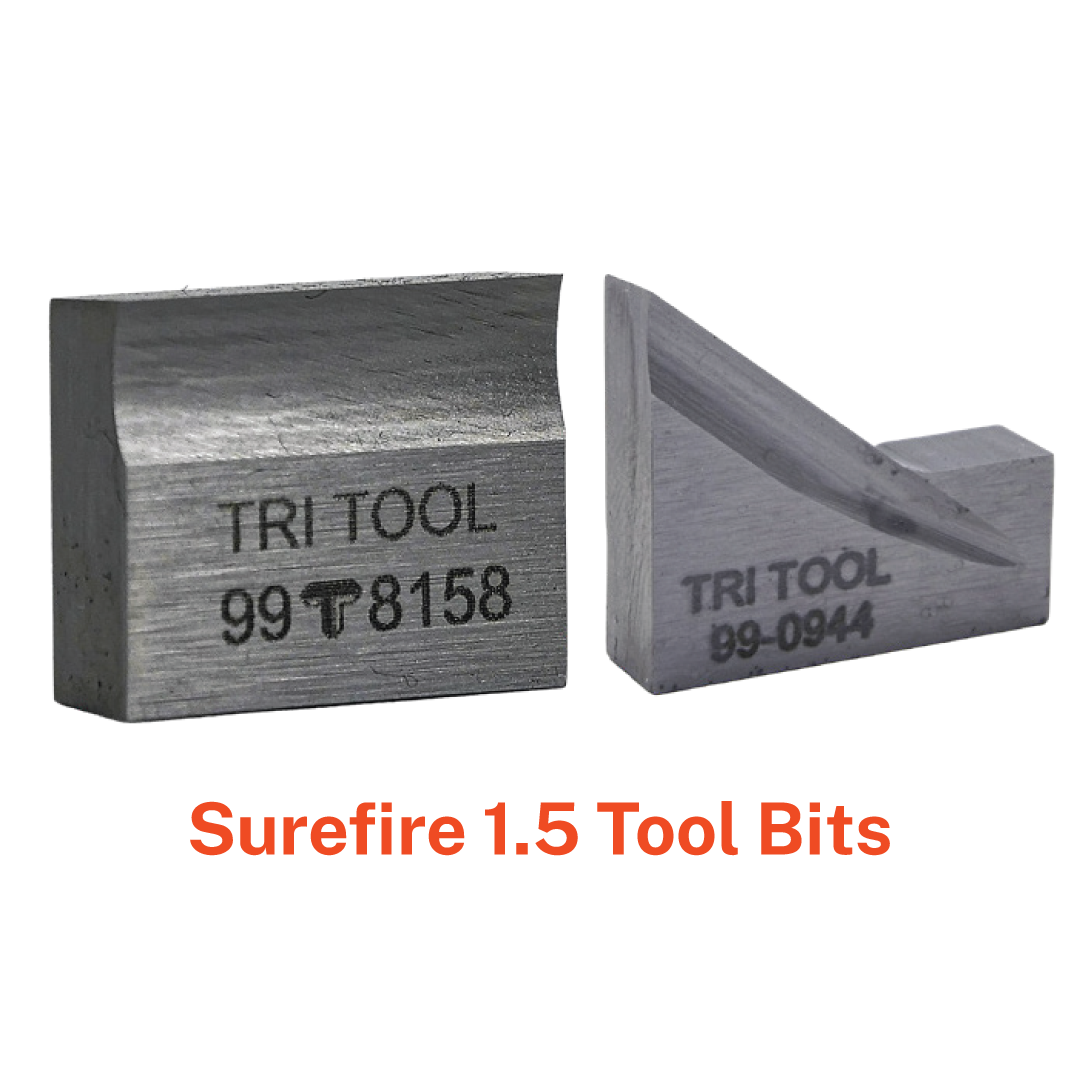

J-Bevel Tooling Illustration

SUREFIRE 4/204B BEVELMASTER™ PIPE BEVELER

37.5° BEVELING/FACING TOOL BITS

RANGE MAX WALL MATERIAL 37.5° BEVEL P/N FACING P/N
1-1/4" pipe-Sch 10-40 up to 2-1/2" pipe-all schs Surefire 4:
.120" (3.1mm)

204B:
.531" (13.5mm) 		CS 99-0333 99-0257
SS 99-3111 99-0789
3 and 3-1/2" pipe-all schs CS 99-3711 99-3571
4" pipe-sch 40 thru 160 SS 99-3712 99-0714

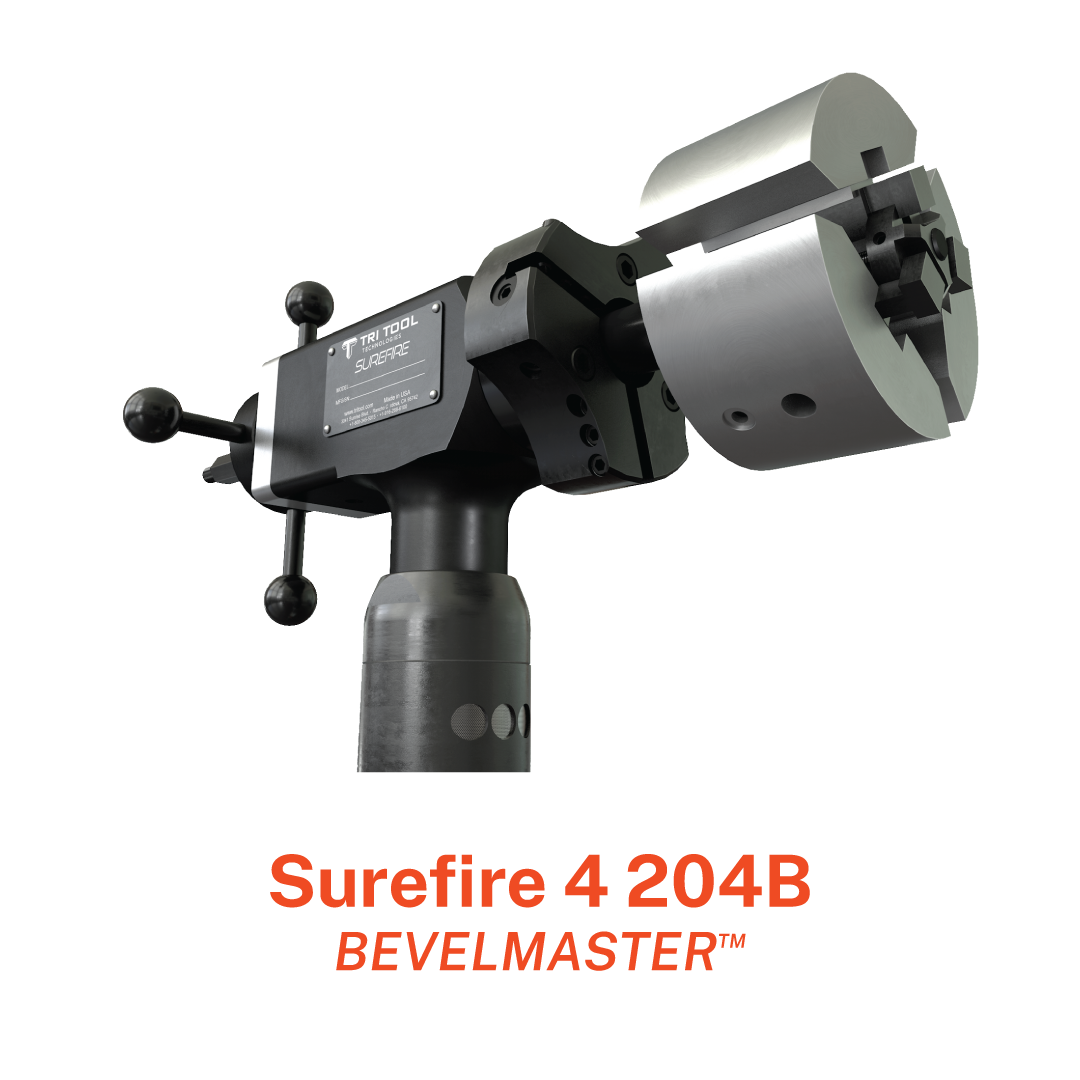

Surefire 4/204B

FACING (LAND) TOOL BITS

RANGE MAX WALL MATERIAL FACING P/N
1-1/4" (31.8mm) ID - 4" (114.3mm) OD pipe Surefire 4: .120" (3.1mm)
204B: .531" (13.5mm) 		CS/SS 99-0277

ID CHAMFER TOOL BITS

RANGE MATERIAL ID CHAMFER P/N
1.60" (40.6mm) - 2.66" (67.6mm) ID CS 99-0168
SS 99-3713
2.14" (54.4mm) - 3.32" (84.3mm) ID CS 99-0833
SS 99-3714
2.90" (73.7mm) - 4.19" (106.4mm) ID CS 99-0320
SS 99-0288

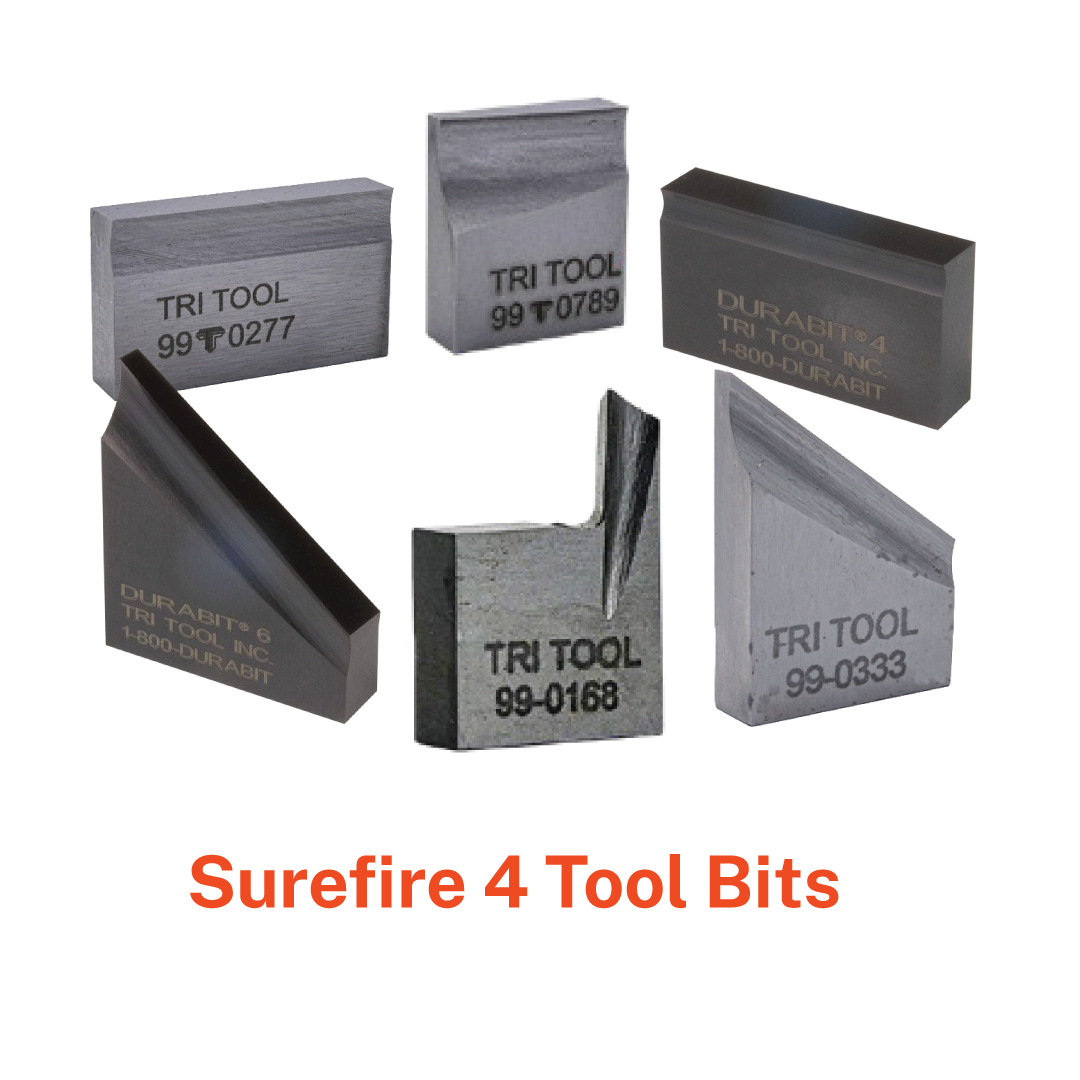

Surefire 4/204B Tool Bits

SUREFIRE 8 PIPE BEVELER

BEVELING/FACING TOOL BITS

RANGE MAX WALL MATERIAL 37.5° BEVEL P/N 45° BEVEL P/N FACING P/N
3"-8" pipe, sch 5 and 10 .148" (3.8mm) CS DURABIT6 99-2914 DURABIT4
SS 99-2919 99-2927 99-5385

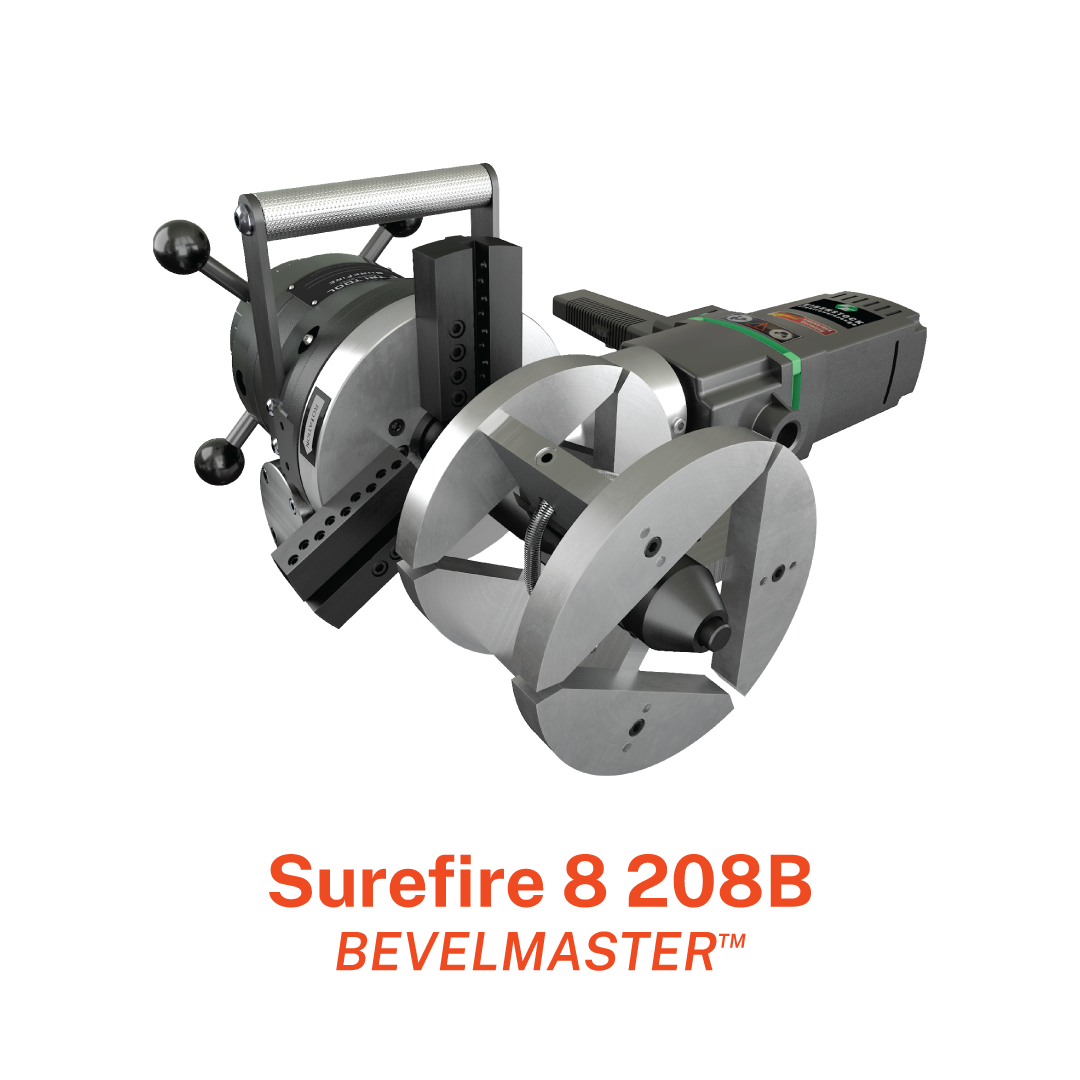

Surefire 8 Tool

208B BEVELMASTER™ PIPE BEVELER

37.5° BEVELING/FACING TOOL BITS

ID RANGE MATERIAL 37.5° BEVEL P/N FACING P/N
2.223" (56.5mm) - 7.160" (181.9mm) CS DURABIT5 DURABIT4
SS 99-2918 99-2917
2.750" (69.9mm) - 8.060" (204.7mm) CS DURABIT6 DURABIT4
SS 99-2919 99-2917

45° BEVELING/FACING TOOL BITS

ID RANGE MATERIAL 45° BEVEL P/N FACING P/N
2.046" (52.0mm) - 6.972" (177.1mm) CS 99-2913 DURABIT4
SS 99-2926 99-2917
3.078" (78.2mm) - 8.004" (203.3mm) CS 99-2914 DURABIT4
SS 99-2927 99-2917

FACING (LAND) TOOL BITS

OD RANGE MATERIAL FACING (LAND) P/N
1.625" (41.3mm) - 8.630" (219.2mm) CS/SS DURABIT4
SS 99-2917
SS/Superalloy 99-2979
COPPER 99-4537

COUNTERBORING TOOL BITS

ID RANGE MATERIAL COUNTERBORE P/N* FACING P/N
2.141" (54.4mm) - 7.220" (183.4mm) CS 99-2907 DURABIT4
SS 99-2920 99-2917
2.546" (64.7mm) - 7.630" (193.8mm) CS 99-2908 DURABIT4
SS 99-2921 99-2917
3.562" (90.5mm) - 8.160" (207.3mm) CS 99-2909 DURABIT4
SS 99-2922 99-2917

ID CHAMFER TOOL BITS

ID RANGE MATERIAL 10° ID CHAMFER P/N FACING P/N
2.000" (50.8mm) - 7.035" (178.7mm) CS 99-2910 DURABIT4
SS 99-2923 99-2917
2.812" (71.4mm) - 7.785" (197.7mm) CS 99-2911 DURABIT4
SS 99-2924 99-2917
3.546" (90.1mm) - 8.160" (207.3mm) CS 99-2912 DURABIT4
SS 99-2925 99-2917

25° J-BEVEL TOOL BITS

ID RANGE J-RADIUS MATERIAL 25° J-BEVEL P/N FACING P/N
1.625" (41.3mm) - 6.410" (162.8mm) 0.188" CS 99-2915 DURABIT4
SS 99-2928 99-2917
2.750" (69.9mm) - 7.660" (194.6mm) CS 99-2916 DURABIT4
SS 99-2929 99-2917
3.750" (95.3mm) - 8.285" (210.4mm) CS 99-3349 DURABIT4
SS 99-3350 99-2917

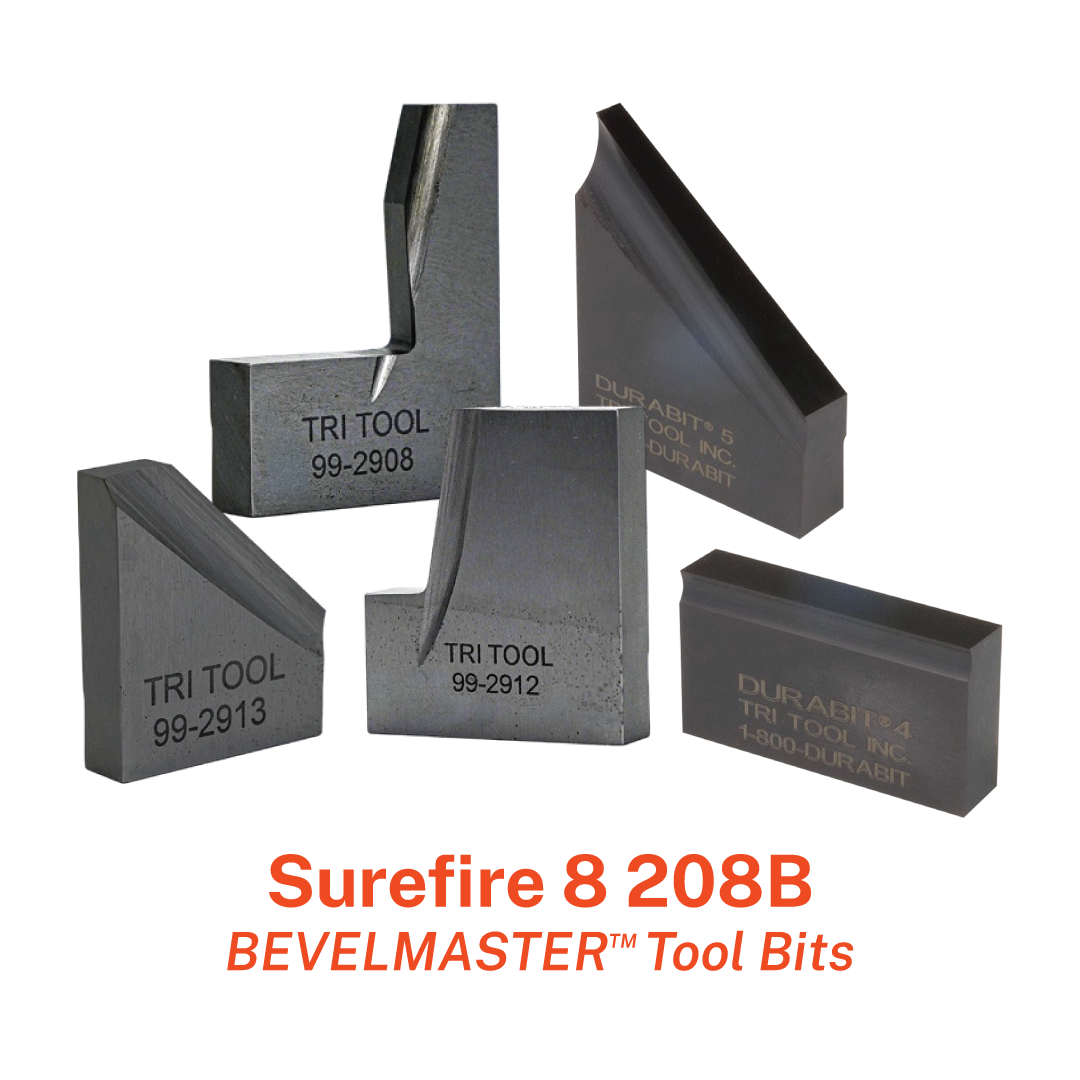

Surefire 8 Toolbits

214B BEVELMASTER™ PIPE BEVELER

37.5°/45° BEVELING/FACING TOOL BITS

BEVEL AND FACE RANGE MATERIAL 37.5° BEVEL P/N 45° BEVEL P/N FACING P/N
3.312" (84.1mm) -13.375" (339.7 mm) ID

Through 14.000" (355.6mm) ID for face or bevel only. 		CS 99-3341 99-3343 DURABIT4
SS 99-3338 99-3344 99-2917
SS/Superalloy 99-3342 99-3345 99-2979
Copper - - 99-4537

ID CHAMFER/COUNTERBORING TOOL BITS

COUNTERBORE RANGE MATERIAL 10° ID CHAMFER P/N 14.5° C'BORE P/N FACING P/N
3.328" (54.1mm) -14.000" (355.6mm) ID CS 99-2911 99-2908 DURABIT4
SS 99-2924 99-2921 99-2917
SS/Superalloy 99-2984 99-2981 99-2979
4.460" (113.3mm) -14.000" (355.6mm) ID CS 99-2912 99-2909 DURABIT4
SS 99-2925 99-2922 99-2917
SS/Superalloy 99-2985 99-2982 99-2979

J-BEVEL TOOL BITS

J-BEVEL RANGE MATERIAL 25° J-BEVEL P/N FACING P/N
3.328" (84.1mm) -12.750" (323.9mm) ID CS 99-2915 DURABIT4
SS 99-2928 99-2917
SS/Superalloy 99-2986 99-2979
3.328" (84.1mm) -13.625" (346.1mm) ID CS 99-2916 DURABIT4
SS 99-2929 99-2917
SS/Superalloy 99-2987 99-2979

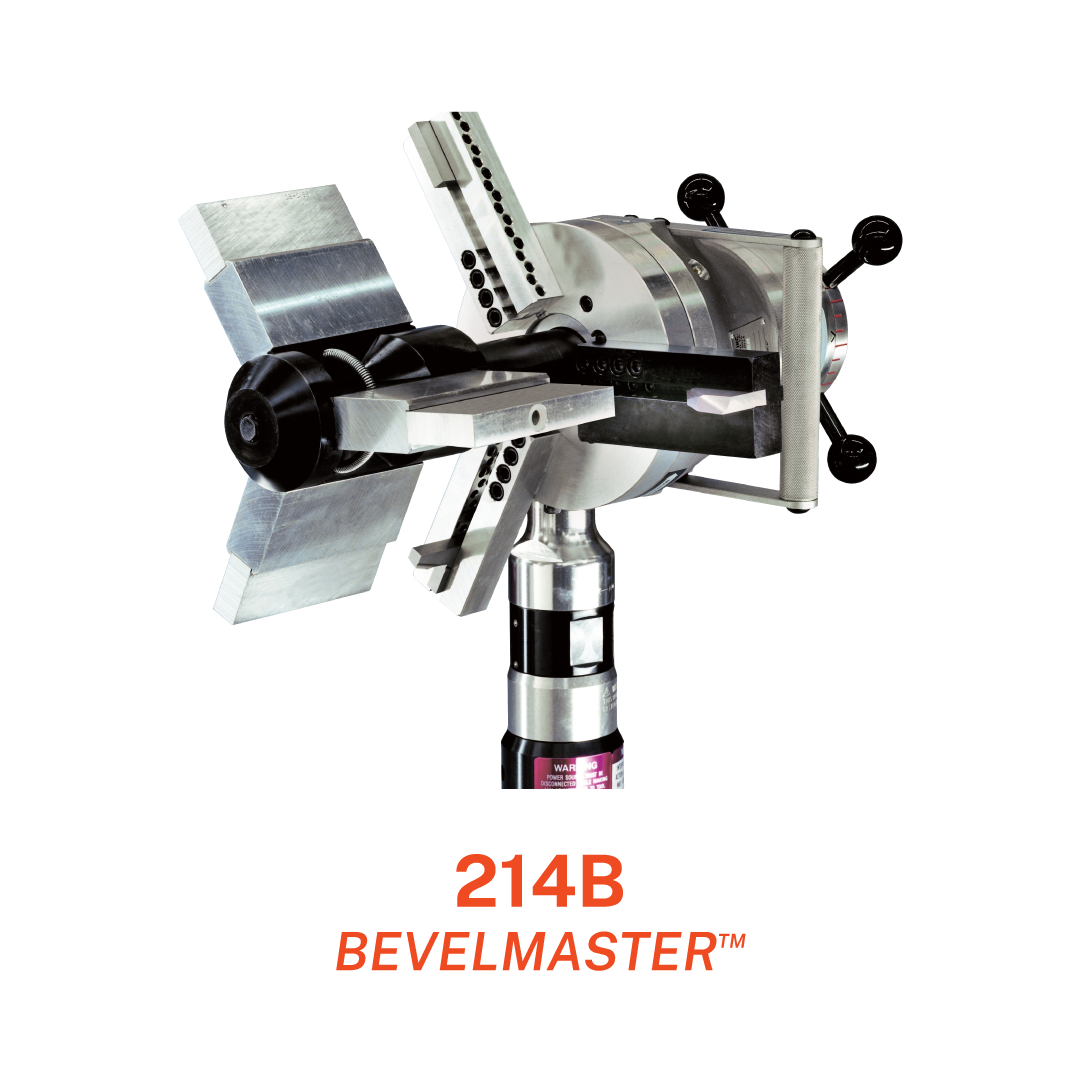

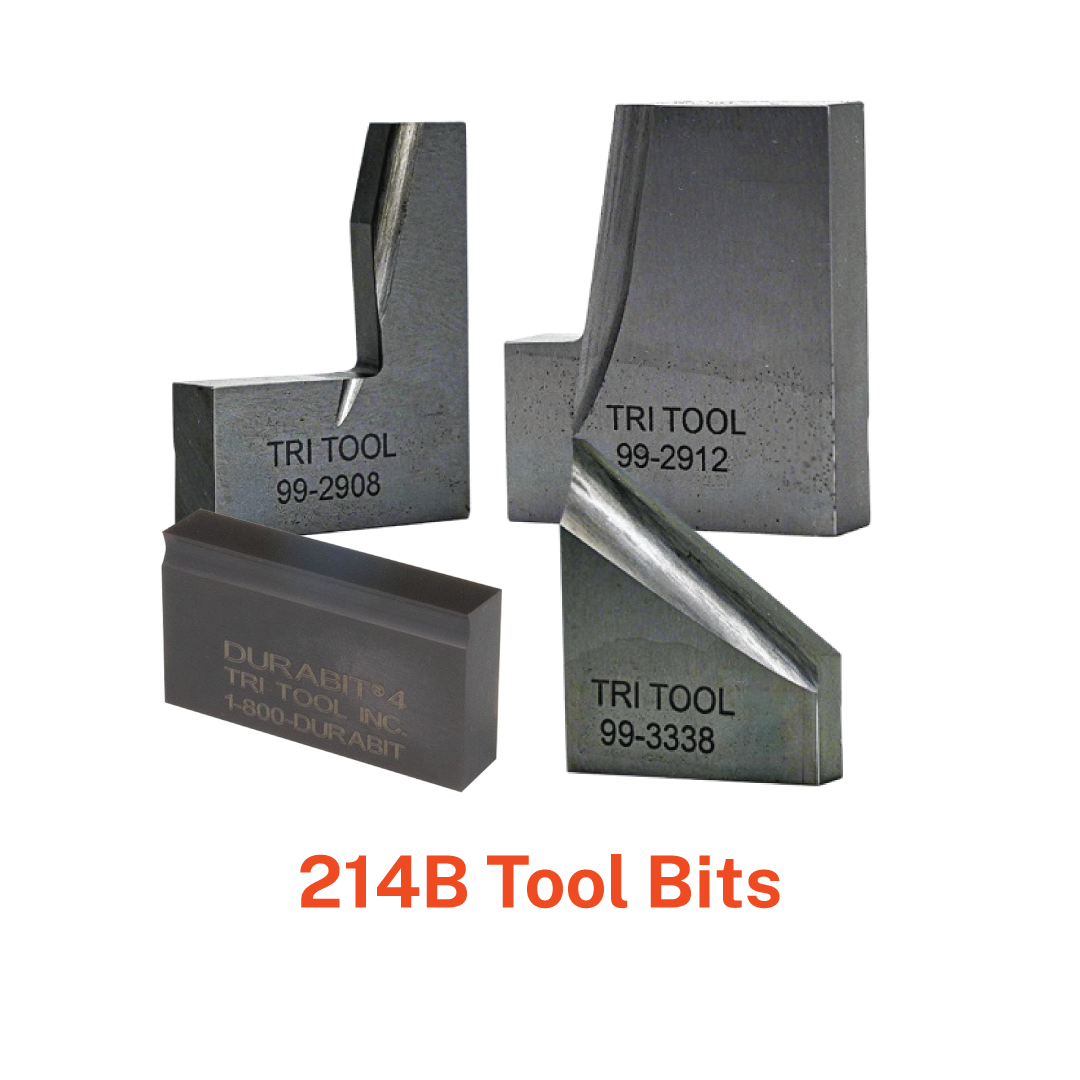

214 Bevelmaster Tool 214B Tool Bits

Tube Facing & Squaring

300MF MICROFACER

SQUARING TOOL BITS

RANGE MAX WALL MATERIAL PART NO.
0.125" (3.2mm) -0.750" (19.1mm) OD .125" (3.2mm) CS/SS 99-0591

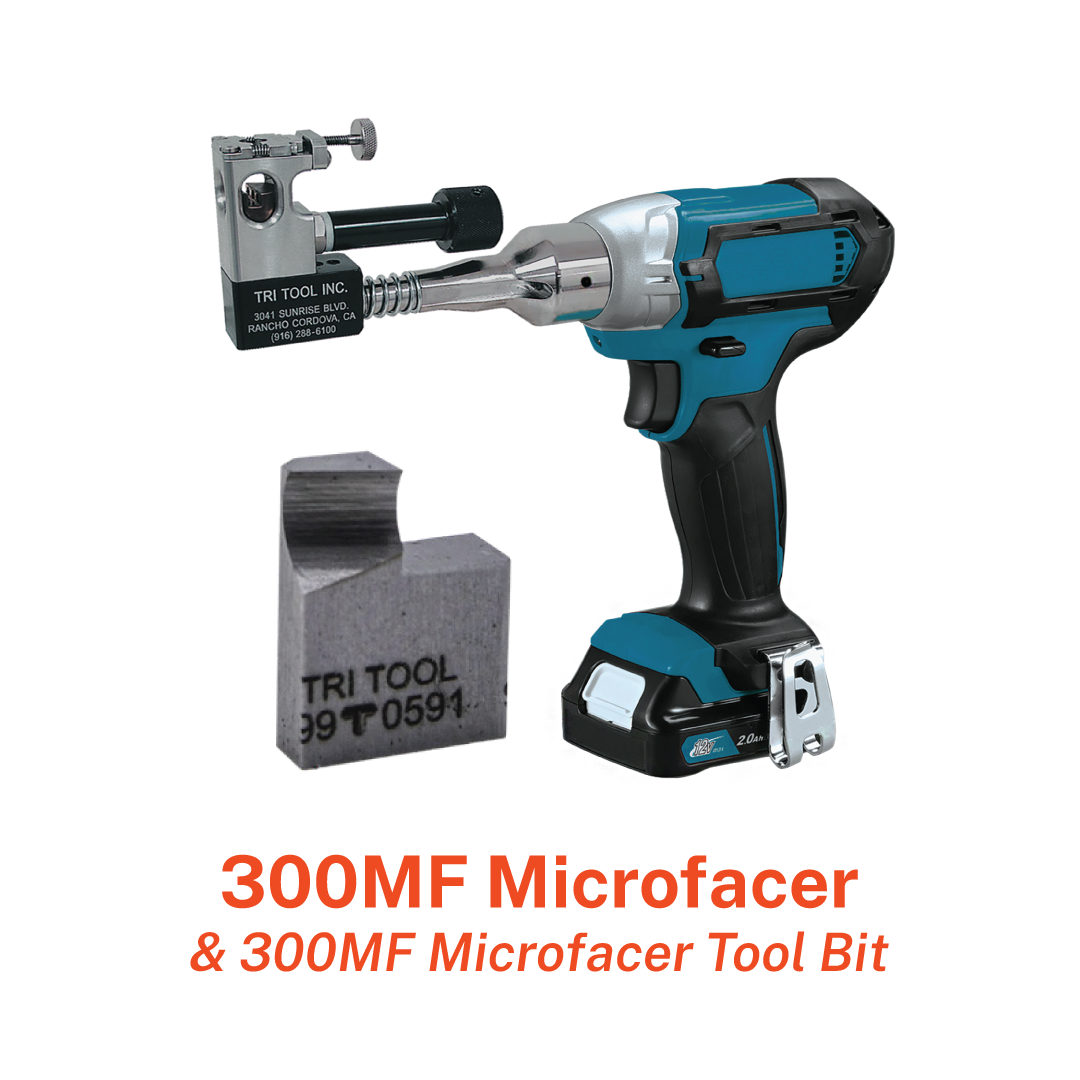

300MF Tool and Tool Bit

STS-1/STS-2

SQUARING TOOL BITS

RANGE MAX WALL MATERIAL SQUARING P/N
STS-1: .125" (3.2mm) -1.125" (28.6mm) OD .200" (5.1mm) CS/SS DURABIT1
STS-2: .188" (4.8mm) -2.500" (63.5mm) OD SS/Superalloy DURABIT1 PRO

SQUARING, SHORT PERCH TOOL BITS

RANGE MAX WALL MATERIAL SQUARING P/N
STS-1: .125" (3.2mm) -1.125" (28.6mm) OD .200" (5.1mm) CS/SS DURABIT3
STS-2: .188" (4.8mm) -2.370" (60.2mm) OD SS/Superalloy DURABIT3 PRO

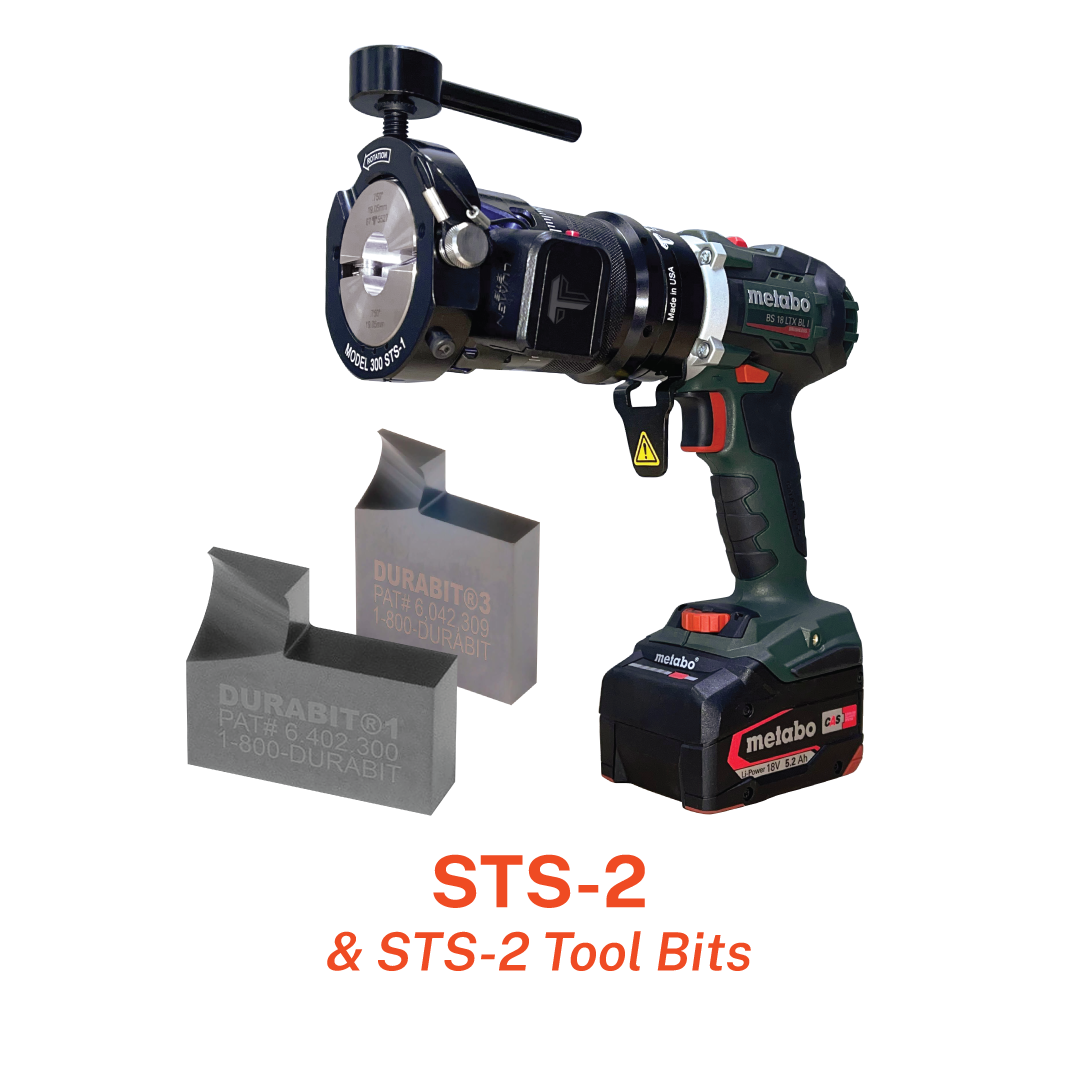

STS 2 Tool and Tool Bits

STS-4

SQUARING TOOL BITS

RANGE MAX WALL MATERIAL PART NO.
.250" (6.4mm) -2.600" (66.0mm) OD .250"
(6.3mm)		 CS/SS 99-2490
1.350" (34.3mm) -4.500" (114.3mm) OD CS/SS DURABIT1
SS/Superalloy DURABIT1 PRO

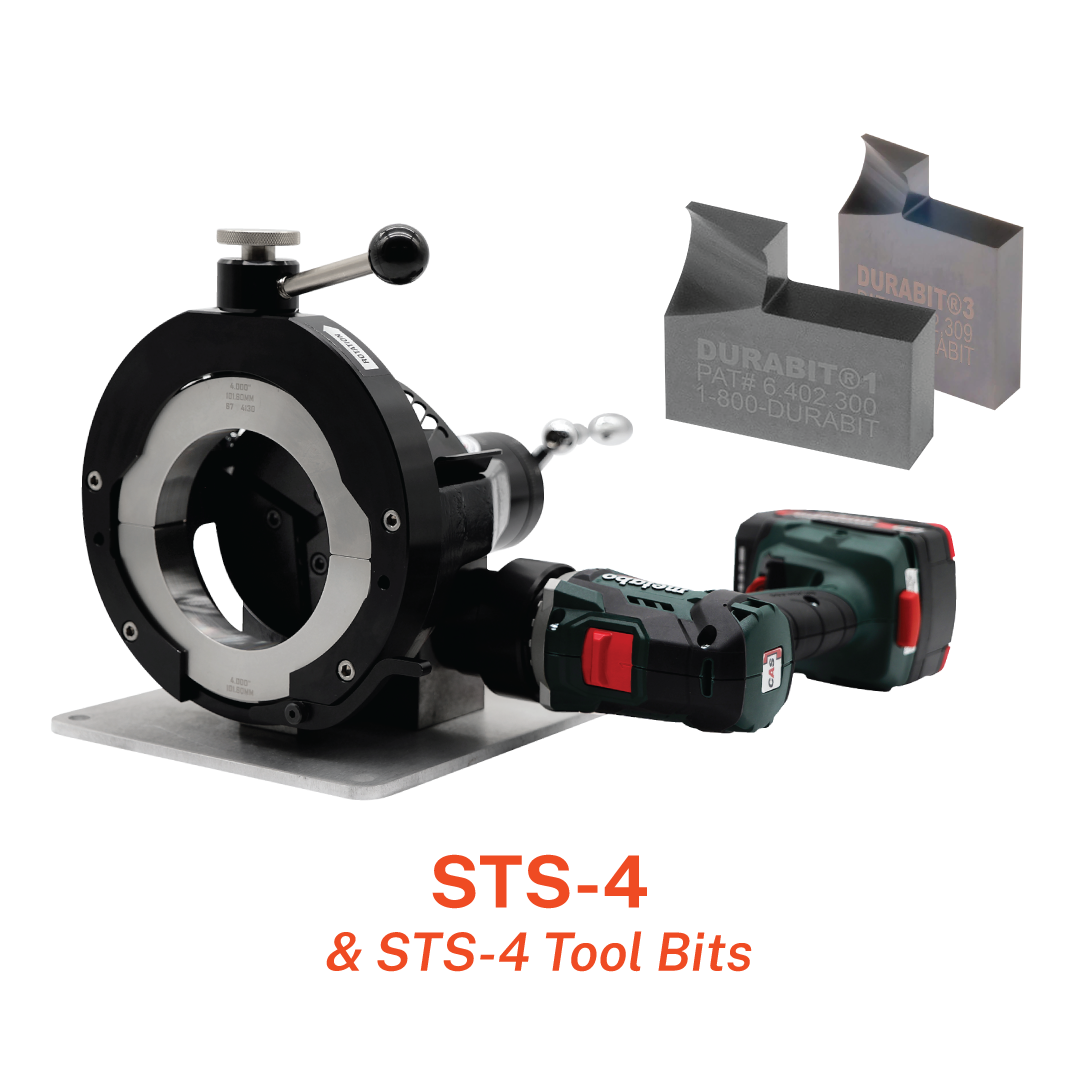

STS-4 Tool and Tool Bits

STS-8

SQUARING TOOL BITS

RANGE MAX WALL MATERIAL PART NO.
0.500" (12.7mm) -8.625" (219.1mm) OD .250"
(6.3mm)		 CS/SS DURABIT1
SS/Superalloy DURABIT1 PRO

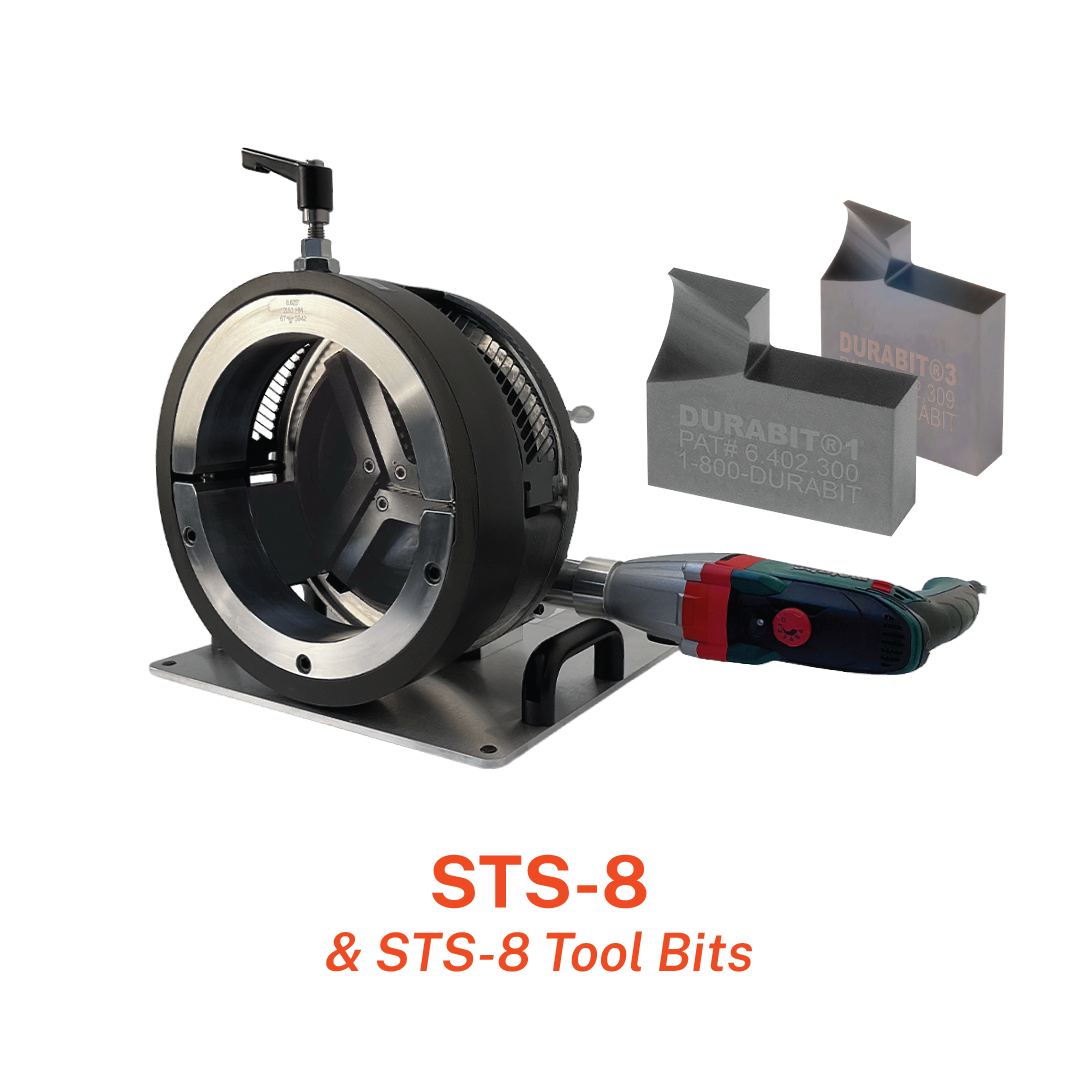

STS-8 Tool and Tool Bits

301SP/301.5SP

SQUARING TOOL BITS

RANGE MAX WALL MATERIAL SQUARING P/N
301SP: .125" (3.2mm) -1.050" (26.7mm) OD .125"
(3.2mm)		 CS/SS DURABIT1
301.5SP: .125" (3.2mm) -1.500" (38.1mm) OD SS/Superalloy DURABIT1 PRO

SQUARING, SHORT PERCH TOOL BITS

RANGE MAX WALL MATERIAL SQUARING P/N
301SP: .125" (3.2mm) -1.050" (26.7mm) OD .125"
(3.2mm)		 CS/SS DURABIT3
301.5SP: .125" (3.2mm) -1.500" (38.1mm) OD SS/Superalloy DURABIT3 PRO

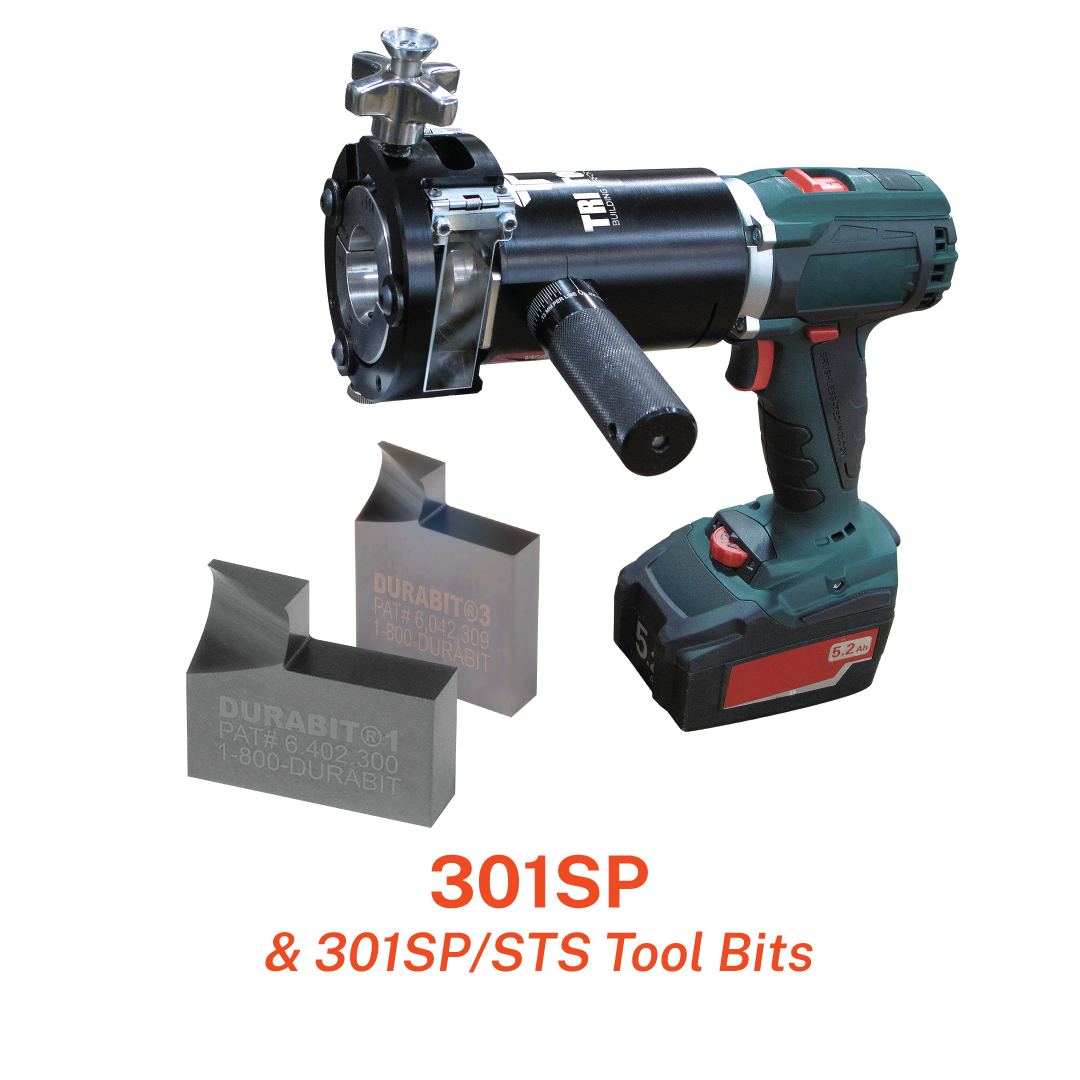

301 SP Tool and Tool Bits

Tube Severing

572AC SEVERMASTER™

SEVERING TOOL BITS

RANGE MAX WALL BURR ON OFFCUT END P/N BURR ON HELD END P/N
0.25" (6.4mm)-2.0" (50.8mm) OD .125" (3.2mm) 99-2959 99-3036

576AC SEVERMASTER™

SEVERING TOOL BITS

RANGE MAX WALL BURR ON OFFCUT END P/N BURR ON HELD END P/N
2.0" (50.8mm) -
6.625" (198.3mm) OD		 .016"-.040" 99-5481 99-5482
.040"-.065" 99-5480 99-5477
.065"-.156" 99-5473 99-5472

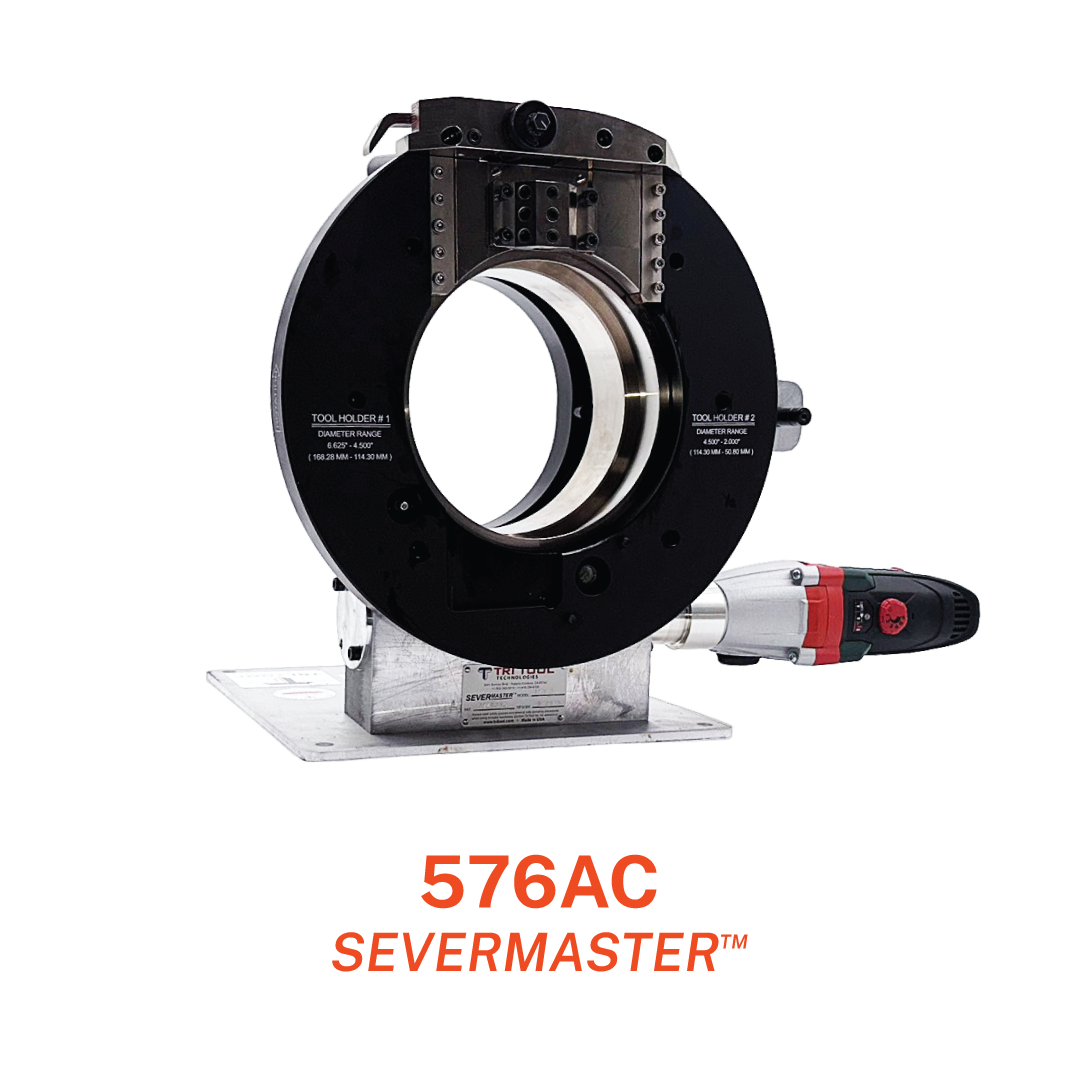

576AC Tool

THE TUBE SAW

SEVERING TOOL BITS

RANGE MAX WALL TOOTH COUNT BLADE P/N
0.25 (6.4mm) - 6.625" (168.3mm) OD .035 (0.9mm)-.098 (2.5mm) 78 Tooth 30-7418
.098 (2.5mm)-.150 (3.81mm) 48 Tooth 30-7419

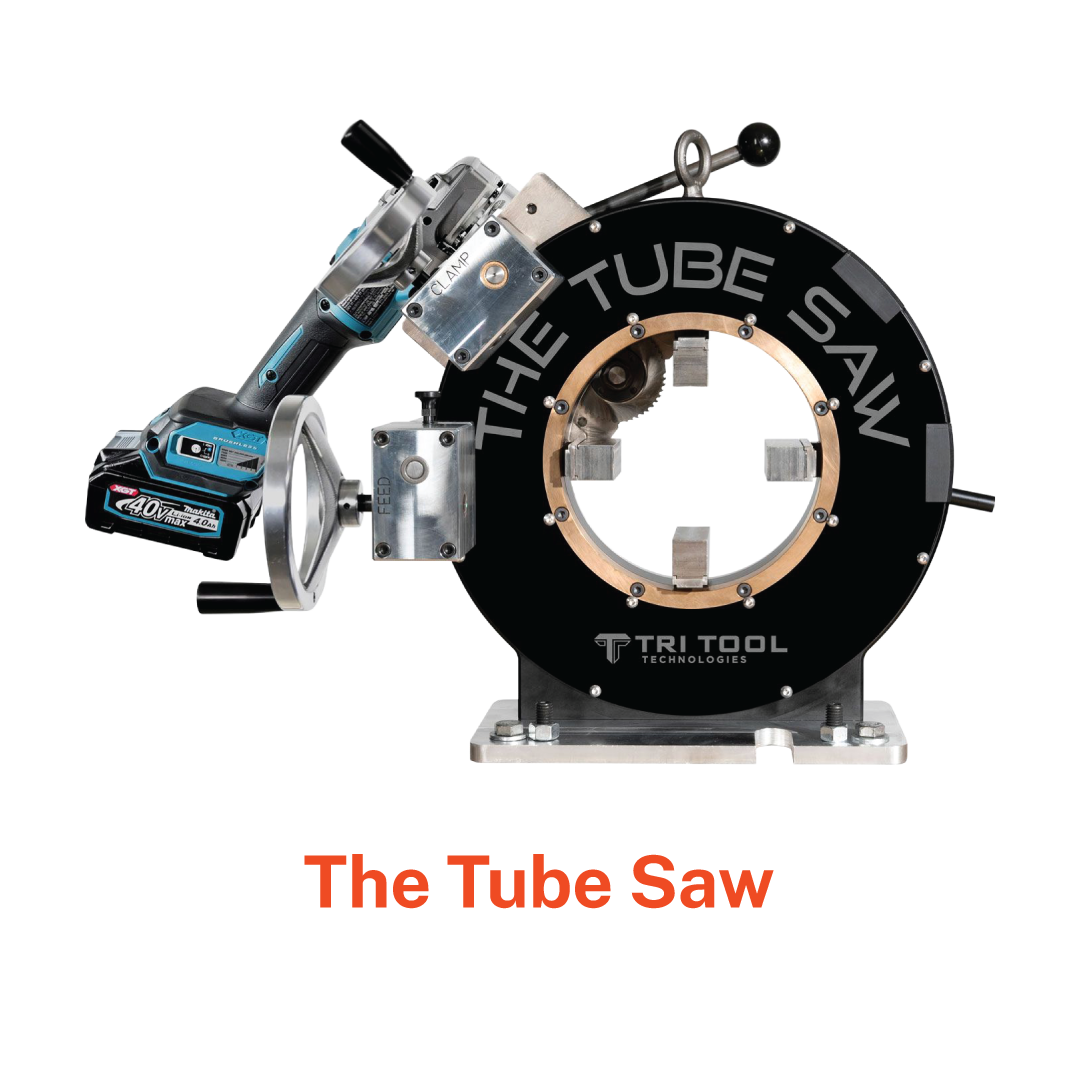

The Tube Saw Tool

Boiler & Heat Exchanger Tube Facing

BOILERMASTER

37.5° BEVELING/FACING TOOL BITS

RANGE MAX WALL MATERIAL 37.5° BEVEL P/N FACING P/N
2.63" Head: 1.25" (31.8mm) -1.90" (48.3mm) ID
4.0" Head: 1.25" (31.8mm) -3.27" (83.1mm) ID 		.531"
(13.5mm)		 CS/SS BOILERMASTER1 99-0257
2.63" Head: 1.83" (46.5mm) -2.57" (65.3mm) ID
4.0" Head: 1.83" (46.5mm) -3.92" (99.6mm) ID 		99-2095

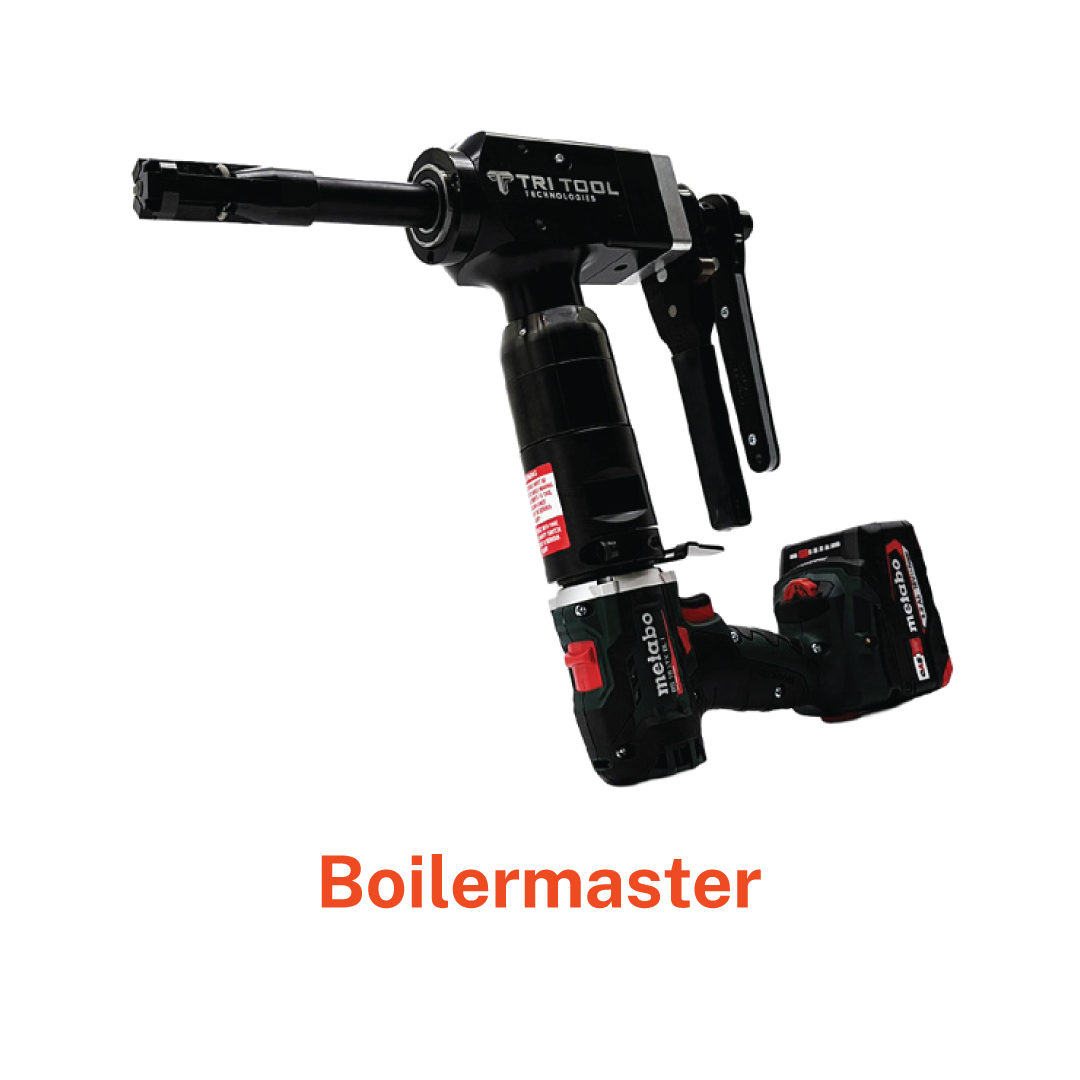

Boilermaster Tool

37.5° BEVELING TOOL BITS

ID MOUNTING RANGE MAX WALL MATERIAL 37.5° BEVEL P/N
2.63” Head Kit: 1.25” (31.8mm) ID -2.63" (66.8mm) OD
4.0” Head Kit: 1.25" (31.8mm) ID -4.50" (114.3mm) OD 		.531"
(13.5mm)		 CS/SS BOILERMASTER1

FACING LAND (HEAVY DUTY) TOOL BITS

ID MOUNTING RANGE MAX WALL MATERIAL 37.5° BEVEL P/N
2.63” Head Kit: 1.25” (31.8mm) ID -2.63” (66.8mm) OD
4.0” Head Kit: 1.25" (31.8mm) ID -4.50" (114.3mm) OD 		.531"
(13.5mm)		 CS/SS 99-5243

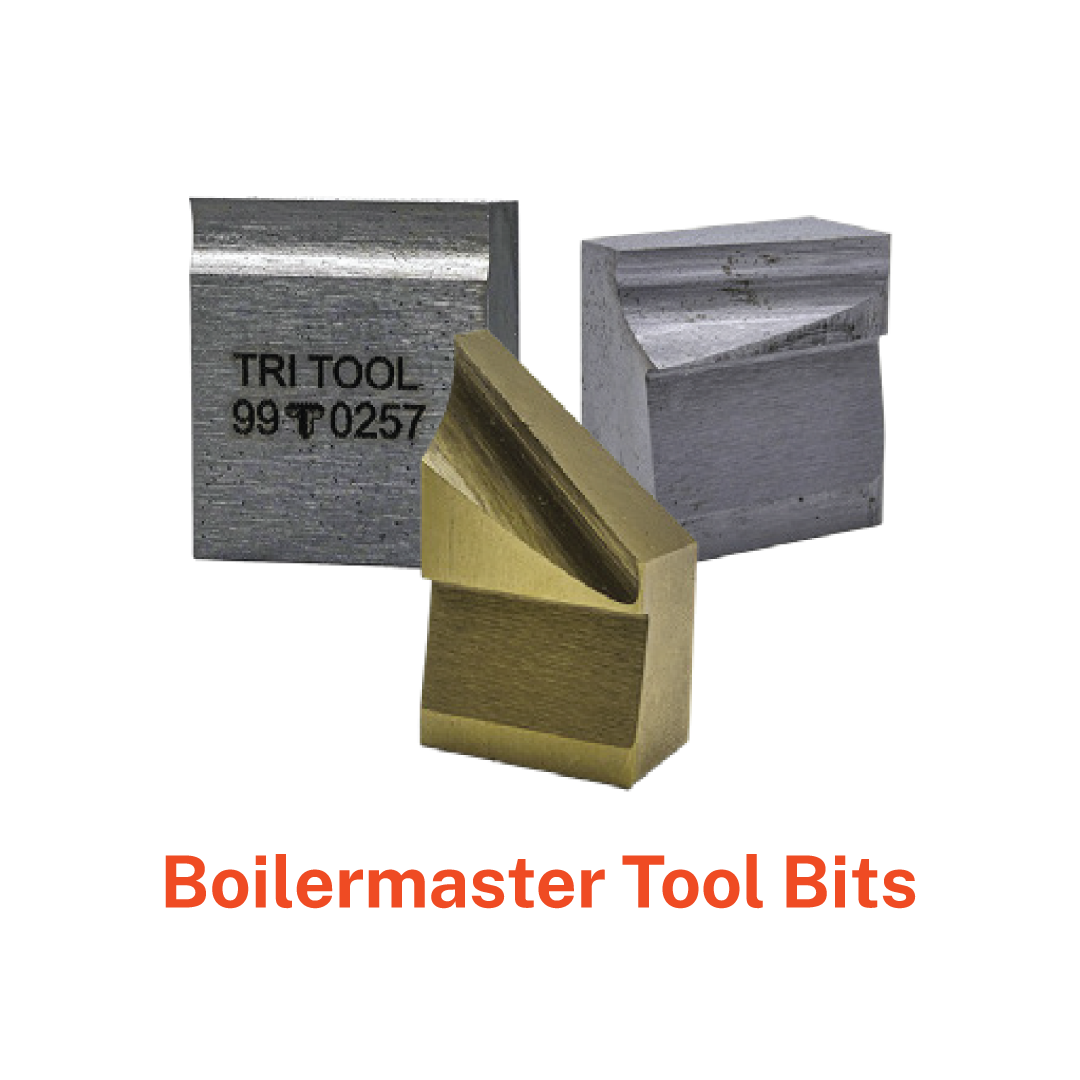

Boilermaster Tool Bits
