ELLIPTICAL MANWAY
WHEN THE PRESSURE
PUSHES YOU TO THE LIMITS.

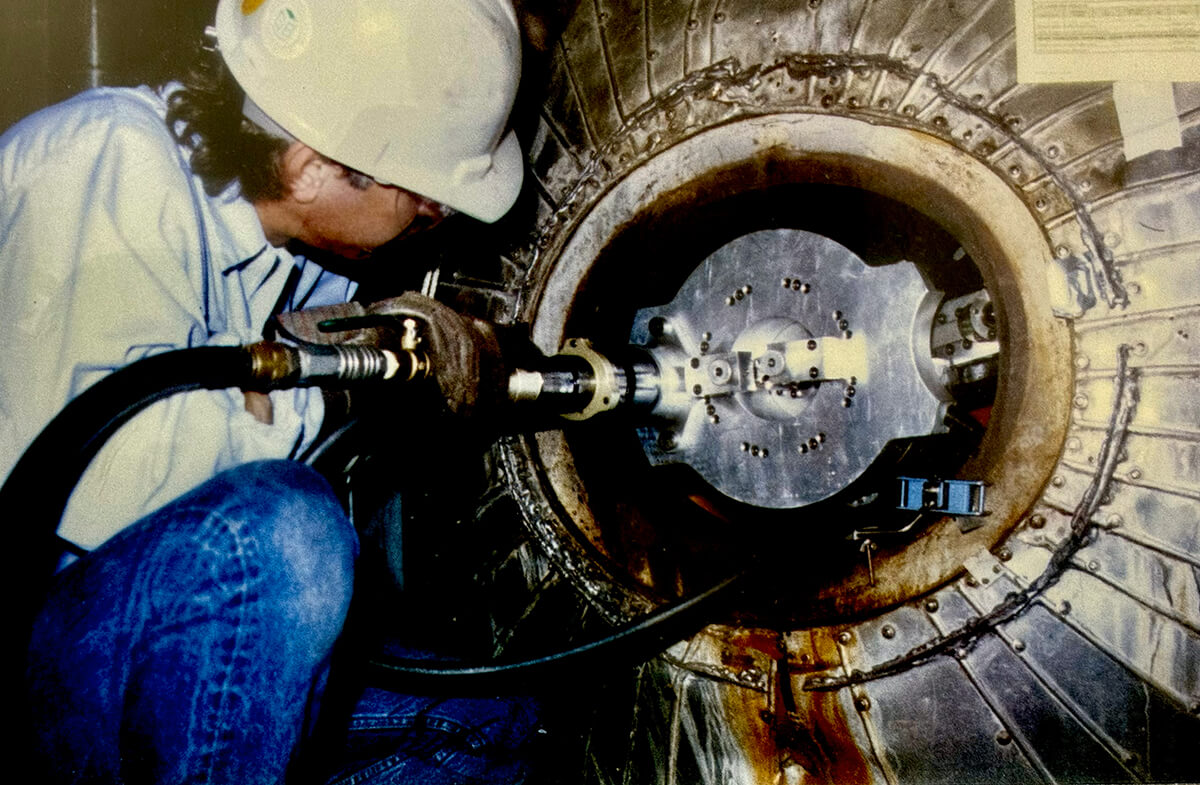

Elliptical Manway Cutting & Machining
.jpg)
Elliptical manways are designed to preserve structural integrity while maintaining a hermetic seal. Over time, damage to the sealing surface, steam cuts, corrosion and other factors can compromise the seal quality, which is a major concern in power plants, chemical processing, food & beverage, oil & gas and pharmaceutical applications.
Don't let deferred maintenance threaten your ability to deliver for your customers while meeting regulatory demands. Tri Tool Technologies offers on-site machining solutions that enable efficient resurfacing of the inside of the oval manway while maintaining tight tolerances - a vital part of restoring sealing performance.
.
Why Elliptical Manway Machining Matters
Manways are critical access points to pressure vessels and storage tanks in industries that require strict hygiene or high-pressure containment. A key factor that contributes to sufficient sealing of the manway is the quality of the sealing surface where the access-door gasket meets the elliptical mounting ring inside of the vessel. When this surface becomes irregular or degraded, the result can be gasket failure, pressure loss, contamination risk and compliance issues that can halt operations.
Tri Tool manway machining systems restore the optimal sealing-surface finish, helping to ensure reliable gasket seating and ensuring long-term performance.
Key Benefits of Elliptical Manway Machining
- A true-to-spec elliptical sealing surface, template tracking is available
- Superior gasket seating for leak-free sealing
- Reduced downtime from leaking manways
- Compliance with industry and safety standards
---web-(1).jpg)
Configurable Elliptical Manway Solutions

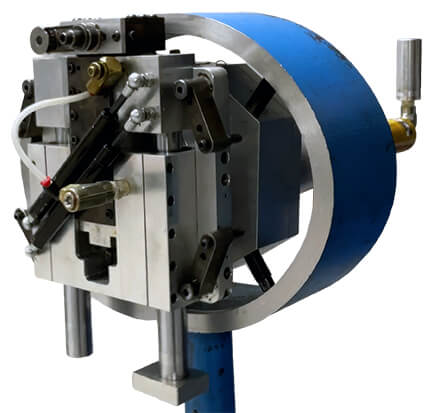

The Tri-Tool elliptical manway lathe is designed specifically for machining the sealing surface inside the vessel or tank, providing an ideal surface for gasket installation. Designed for field-machining professionals, these systems are driven pneumatically and deliver the required finish exactly where it matters most.
Systems can be configured to handle:
- Operation of the machine from outside the vessel or inside (if feasible, this can be significantly faster due to ease of operation and verification of surface quality)
- Inner diameter tracking or template tracking for a uniform surface regardless of the roughness of the sides of the opening

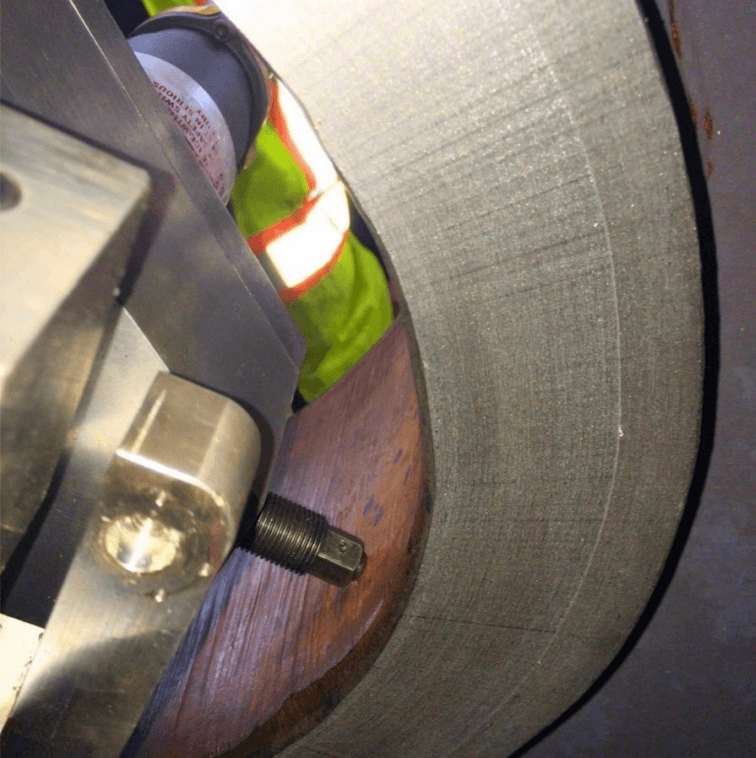

- Adjustable feed and depth controls to machine either a 125 or 250 RMS phonographic/record finish
- One manway diameter or set-up for multiple diameters from 12”x16” through 18”x22”
- Sealing surfaces from 1” through 2” on the inside of the vessel
- Tooling for stainless, carbon steel or exotic alloys
Field-Proven Where Precision Meets Pressure.
For over five decades, Tri Tool has pioneered the portable machining industry. Our configurable elliptical manway solutions follow that legacy engineered for reliability, proven under pressure, and backed by the Tri Tool Promise.
